Cod:BD5KTL-RL1
2.535,00 lei fără TVA
Cantități mari sau proiect complet? Îți facem ofertă personalizată.
Categorie: Invertoare solare

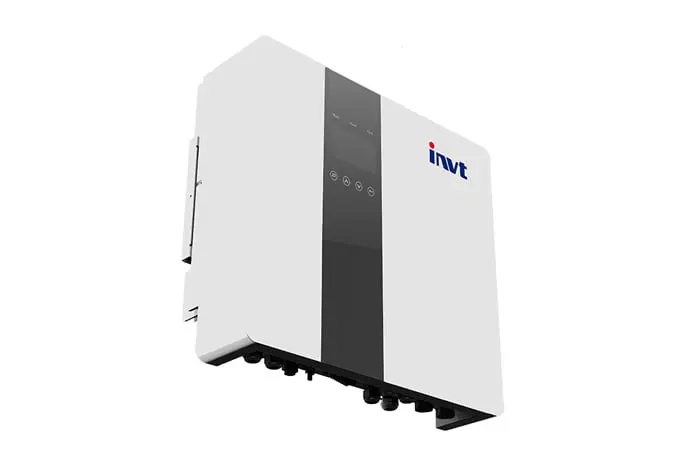

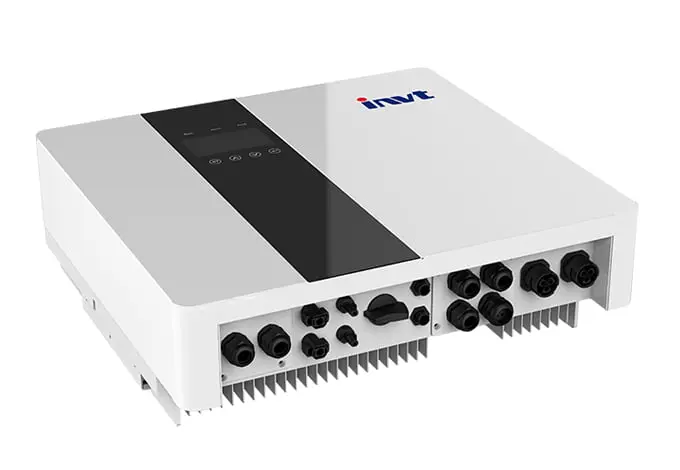

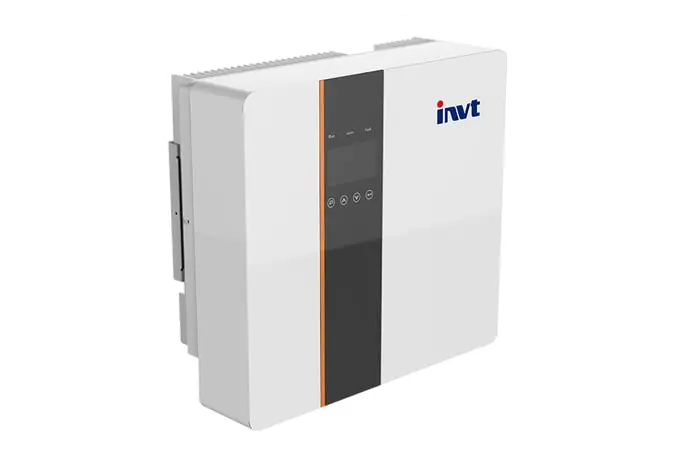

Invertor INVT Hibrid 5kW 48V 2 x MPPT 95A BD5KTL-RL1, cod BD5KTL-RL1, din gama INVT.
Curent maxim incarcare DC: 95A.
Functie paralel: Nu.
Injectie retea: Da.
Putere: 5KW.
Putere PV Max: 7000W.
Tensiune MPPT: 125-550VDC.
Tip: Hibrid.
Greutate: 30 kg.
Dimensiuni: 55 × 51,5 × 20 cm.
Input (PV) — Max. PV Input Power: 7kW; .
Input (PV) — Max. PV Input Voltage: 550V.
Input (PV) — Start Voltage: 120V.
Input (PV) — MPP Voltage Range: 125V ~ 550V.
Input (PV) — Rated MPPT Voltage Range: 360V.
Input (PV) — Max. PV Input Current: 14A.
Input (PV) — Number of MPP Trackers / String per MPPT: 2 / 1.
Output (AC) — Max. Output Current: 21.7A; .
Output (AC) — Rated Power: 5kVA; .
Output (AC) — Rated Voltage: 230V, L + N + PE.
Output (AC) — Operating Voltage Range: 180V ~ 280V.
Output (AC) — Frequency: 50Hz / 60Hz.
Output (AC) — Power Factor: 1 (0.99 lagging~0.99 leading).
Output (AC) — THDi: <3%.
Output (EPS) — Rated Power: 5kVA; .
Output (EPS) — Rated Voltage: 230Vac.
Output (EPS) — Rated Current: 21.7A; .
Output (EPS) — Rated Frequency: 50Hz / 60Hz.
Output (EPS) — Automatic Switch Time: <20ms.
Output (EPS) — Overload Capability: 110%, 60s / 120%, 30s / 150%, 10s.
Output (EPS) — THDU: <2%.
Battery — Battery Voltage Range: 40V ~ 58V.
Battery — Max. Charging Voltage: 58V.
Battery — Charge / Discharge Current: 95 A/ 110A; .
Battery — Battery Type: Lithium / Lead-acid.
Battery — Communication: CAN / RS485.
Efficiency — Max. DC Efficiency: 97.60%.
Efficiency — European Efficiency: 97%.
Efficiency — MPPT Efficiency: 99.90%.
Efficiency — Battery Charge / Discharge Efficiency: 95.5% / 95%.
Communication — Display: LCD.
Communication — Communication: standard: RS485 / CAN / DRM optional: WIFI / LAN.
Standard Compliance — Certificates: CE, TÜV, SAA.
General Data — Dimensions (W x H x D): 550 x 515 x 200 mm.
General Data — Weight: 26kg.
General Data — Operation Temperature: -25℃ ~ +60℃.
General Data — Cooling Method: Natural Cooling.
General Data — Protection Degree: IP65.
General Data — Noise Emission: <35dB.
General Data — Max. Operating Altitude: 5000m (derating above 2000m).
General Data — Relative Humidity: 0 ~ 95% (non-condensing).
General Data — Topology: Transformerless.
General Data — Standby Power Comsuption: ＜3W.
| Input (PV) | |
|---|---|
| Max. PV Input Power | 7kW; |
| Max. PV Input Voltage | 550V |
| Start Voltage | 120V |
| MPP Voltage Range | 125V ~ 550V |
| Rated MPPT Voltage Range | 360V |
| Max. PV Input Current | 14A |
| Number of MPP Trackers / String per MPPT | 2 / 1 |
| Output (AC) | |
| Max. Output Current | 21.7A; |
| Rated Power | 5kVA; |
| Rated Voltage | 230V, L + N + PE |
| Operating Voltage Range | 180V ~ 280V |
| Frequency | 50Hz / 60Hz |
| Power Factor | 1 (0.99 lagging~0.99 leading) |
| THDi | <3% |
| Output (EPS) | |
| Rated Power | 5kVA; |
| Rated Voltage | 230Vac |
| Rated Current | 21.7A; |
| Rated Frequency | 50Hz / 60Hz |
| Automatic Switch Time | <20ms |
| Overload Capability | 110%, 60s / 120%, 30s / 150%, 10s |
| THDU | <2% |
| Battery | |
| Battery Voltage Range | 40V ~ 58V |
| Max. Charging Voltage | 58V |
| Charge / Discharge Current | 95 A/ 110A; |
| Battery Type | Lithium / Lead-acid |
| Communication | CAN / RS485 |
| Efficiency | |
| Max. DC Efficiency | 97.60% |
| European Efficiency | 97% |
| MPPT Efficiency | 99.90% |
| Battery Charge / Discharge Efficiency | 95.5% / 95% |
| Communication | |
| Display | LCD |
| Communication | standard: RS485 / CAN / DRM optional: WIFI / LAN |
| Standard Compliance | |
| Certificates | CE, TÜV, SAA |
| General Data | |
| Dimensions (W x H x D) | 550 x 515 x 200 mm |
| Weight | 26kg |
| Operation Temperature | -25℃ ~ +60℃ |
| Cooling Method | Natural Cooling |
| Protection Degree | IP65 |
| Noise Emission | <35dB |
| Max. Operating Altitude | 5000m (derating above 2000m) |
| Relative Humidity | 0 ~ 95% (non-condensing) |
| Topology | Transformerless |
| Standby Power Comsuption | ＜3W |
| Cod produs | BD5KTL-RL1 |
|---|---|
| Curent maxim incarcare DC | 95A |
| Functie paralel | Nu |
| Injectie retea | Da |
| Putere | 5KW |
| Putere PV Max | 7000W |
| Tensiune MPPT | 125-550VDC |
| Tip | Hibrid |
| Brand | INVT |
| Greutate | 30 kg |
| Dimensiuni | 55 × 51,5 × 20 cm |
